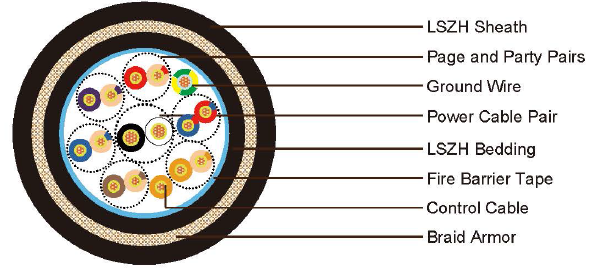

Fire resistant composite cable
1 Pair Power Cable and 1 Ground Wire
| conductor | 12AWG tinned copper |
|---|---|
| Fire Barrier | Mica Tape |
| Insulation | XLPE compound. Thickness 0.7mm |
| Insulation Color | Black, White |
| Ground Wire Color | Green/Yellow |
6 Party Line and Spare Pair and 1 Control Wire
| conductor | 18AWG tinned copper |
|---|---|
| Fire Barrier | Mica Tape |
| Insulation | XLPE compound. Thickness 0.7mm |
| Insulation Color | Red,Light Tan/Red;Violet, Light Tan/Violet; Blue,Light Tan/Blue;Brown,Light Tan/Brown;Yellow,Light Tan/Yellow; Blue/Red/Blue |
| Ground Wire Color | Orange |
Element Assembly
| Core Make-up | The Power Pair, Ground Wire, Party Line and Spare Pair,and Control Wire are twisted together. Fillers will be available if necessary |
|---|---|
| Binder tape | Fire barrier tape |
| Bedding | 2.0mm Lszh compound, Black |
| Armor | Tinned copper wire braid,coverage ≥88% |
| Sheath | 2.0mm Lszh compound(IEC60092 SHF2). Overall Diameter 31±2.5mm |
| Sheath Color | Black |
Electrical and Physical Properties @20℃
Power Pair, Ground Wire
Max. Conductor Resistance:5.4 Ohm/km at 20℃
Insulation Resistance:≥1000 MOhmxkm
Party Line and Spare Pair, Control Wire
Max. Conductor Resistance :21.4 Ohm/km at 20℃
Insulation Resistance:≥1000 MOhmxkm
Operating Temperature:-20℃/+90℃
Voltage Rating:600/1000V
Fire Characteristics:
Fire Resistance: IEC 60331
Flame Propagation:IEC 60332-3A
Low Smoke Capacity: IEC61034-1/2
Halogen Free:IEC60754-1/2
